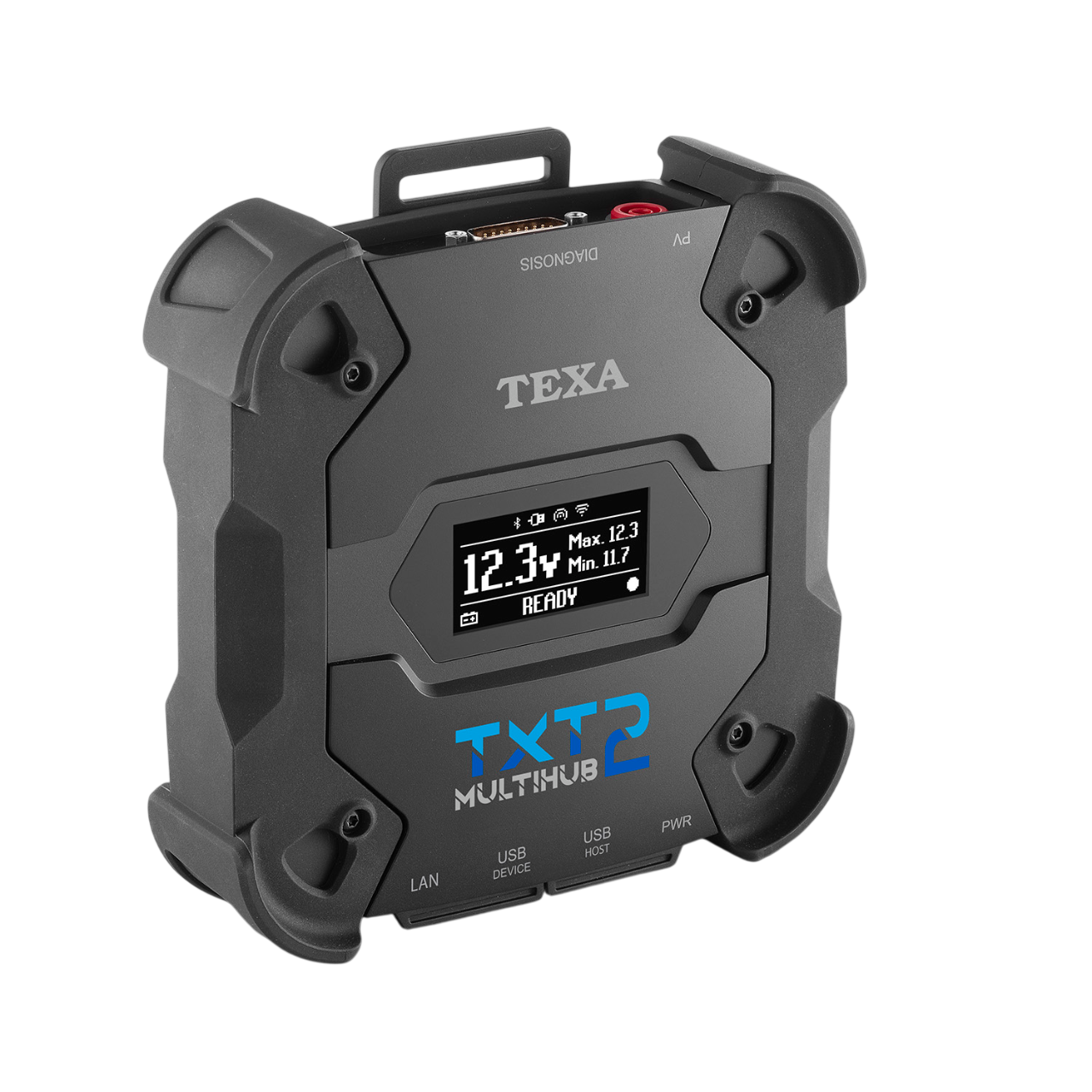

TXT MULTIHUB

Multibrand Diagnostics by TEXA

In today's automotive landscape, technicians encounter a diverse array of vehicles, each with unique diagnostic protocols and multiple connection modes. To address this complexity, TEXA has developed the TXT MULTIHUB, an exceptionally versatile vehicle interface designed to scan all types of vehicles seamlessly.

Versatile Vehicle Compatibility

TXT MULTIHUB is engineered to support a wide range of vehicles, including:

• Cars
• Commercial Vehicles
• Agricultural & Construction Equipment
• Powersports
• Boats & PWCs

This extensive compatibility ensures that technicians can handle diagnostics across various vehicle categories with ease and efficiency.

Advanced Technical and Constructive Features

TXT MULTIHUB boasts a suite of technologically advanced features that set it apart in the diagnostic tool market:

• Operational Capability: Supports all five TEXA diagnostic modules.
• Built-In Display: Features a practical backlit OLED display for enhanced usability.
• IP53 Certification: Provides robust protection against water splashes and dust ingress.
• Protocol Management: Handles DoIP, CAN-FD, J2534/RP1210 protocols, and more, ensuring comprehensive diagnostic capabilities.

A Unique Tool for All Vehicles

As the only diagnostic tool capable of operating on cars, heavy-duty vehicles, motorcycles, boats, agricultural and construction vehicles, TXT MULTIHUB guarantees unparalleled performance. It ensures that all diagnostic operations are completed efficiently, maximizing customer satisfaction through reliable and precise diagnostics.

Built-In Display for Enhanced Usability

TXT MULTIHUB is equipped with a backlit OLED display that enhances usability by providing real-time information based on three message types:

1. Communication Mode: Indicates the current mode of communication with the display unit.
2. Battery Charging Voltage: Displays the live voltage of the vehicle's battery, crucial for delicate operations like Pass-Thru reprogramming.
3. Operating Status: Shows the tool’s operating status, including standard diagnosis, DoIP Wi-Fi, DoIP Ethernet, CAN-FD, Pass-Thru, and more.

The display supports over 40 different messages, giving technicians constant control and insight into the tool’s operation.

Robust, Practical, and Handy Design

Designed for durability and practicality, TXT MULTIHUB features a reinforced body with anti-shock corners. Its rugged construction:

• IP53 Certified: Resists water splashes and dust, making it suitable for harsh work environments.
• MIL-STD 810G Certified: Successfully passed the military standard drop test, ensuring it can withstand impacts and falls.

No Limits Connectivity

TXT MULTIHUB offers advanced connectivity options, enabling mechanics to work on any type of vehicle with flexibility and speed:

• Wi-Fi Module: Facilitates diagnostic operations using standard CAN and DoIP protocols.
• Ethernet Cable (RJ45): Reserved for DoIP operations (ISO 13400).
• USB Sockets: Supports all types of diagnostics, including Pass-Thru (SAE J2534-1 and SAE J2534-2).
• Bluetooth Module: Enables conventional diagnoses with stable connections.

Built-In DoIP, Even Wireless

TXT MULTIHUB simplifies diagnostics for vehicles equipped with DoIP (Diagnostic over Internet Protocol) technology by supporting wireless DoIP connections. This ensures efficient management of the extensive electronic systems and diagnostic data prevalent in modern vehicles.

Pass-Thru – Direct Access to Manufacturers’ Data

TXT MULTIHUB is fully compliant with SAE J2534-1 and SAE J2534-2 regulations, allowing seamless transitions from standard diagnosis to Pass-Thru mode automatically. This compliance enables direct access to maintenance and diagnostic data provided by vehicle manufacturers, essential for updating software in control units.

Additionally, TXT MULTIHUB supports RP1210, enabling diesel technicians to pair it with OE software for enhanced diagnostic capabilities.

Optimal Wi-Fi Configuration

TXT MULTIHUB offers two Wi-Fi configuration options to suit different workshop environments:

• Station Configuration: Connects to the workshop’s Wi-Fi network or a smartphone, providing greater coverage and faster data exchange between IDC5 software and TEXA VCI.
• Hotspot Configuration: Creates a point-to-point wireless connection between TXT MULTIHUB and the display tool, ideal for workshops without a stable Wi-Fi connection but requiring extensive coverage and speed beyond Bluetooth capabilities.

Continuously Evolving Linux Operating System

Equipped with a Linux operating system, TXT MULTIHUB offers:

• Usability: Provides a user-friendly interface that adapts seamlessly to new functions.
• IT Security and Efficiency: Utilizes Smart mode communication, automatically switching channels based on workshop dynamics and diagnostic types to always select the best available connection without manual intervention.

Processor and Memory

• Main Processor:
  • Type: iMX6
  • Clock Speed: 1 GHz
  • RAM: 512 MB
  • Mass Storage: eMMC 8 GB
• Coprocessor:
  • Type: STM32F439
  • Clock Speed: 168 MHz
  • RAM: 2 MB SRAM, 8 MB SDRAM
  • Flash Memory: 2 MB

Power Supply

• Power Supply Connector: PWR: 2.1 DC jack
• Power Supply:
  • Voltage Range: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings)
  • Consumption: 1 A @12 V max
• Absorption:
  • Power Consumption: 12 Vdc (2 A)

Connectivity

• USB Connectors:
  • USB Host: USB 2.0 Type A, max 1 A out
  • USB Device: USB 2.0 Type B (priority connector)
• Bluetooth Communication:
  • Version: Bluetooth 5.0 (BDR/EDR/LE)
• WiFi Communication:
  • Standards: WiFi IEEE 802.11 b/g/n 2.4GHz
  • Operational Band: 2400 ÷ 2483.5 MHz
  • Maximum Radio Frequency Power Transmitted: 10 dBm (2400 ÷ 2483.5 MHz)

Diagnostic Connectors

• Diagnosis Connector: DSUB-26HD (ISO 22900-1)
• DoIP Connector: RJ45 (UDP/TCP 13400)
• Control Units Reprogramming Connector: PV (SAE J2534-1)

User Interface

• Display: OLED 64×128 dot

Environmental Specifications

• Operating Temperature: 0 ÷ 50 °C
• Storage Temperature: –20 ÷ 60 °C
• Operating Moisture: 10 ÷ 80% without condensation

Physical Specifications

• Dimensions: 176.1 x 175.4 x 46.8 mm
• Weight: 600 g
• IP Protection Level: IP53 (*) with properly closed protective caps.

Supported Protocols

• Blink Codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN Channel
• CAN ISO11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1 / RP1210
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)

Compliance and Directives

• RoHS 2011/65/EU
• RED 2014/53/EU
• 2015/863/EU

Electromagnetic Compatibility

• ETSI EN 301 489-1
• ETSI EN 301 489-17

Radio Systems

• ETSI EN 300 328

Electrical Safety

• EN 62638-1/AC:2015
• EN 62311:2008

Warranty

• Coverage: 1 year
